Flat Top vs Hammerhead Tower Crane: Complete Comparison Guide

5/27/20263 min read

Flat Top vs Hammerhead Tower Crane: Complete Comparison Guide

When selecting a tower crane for your construction project, understanding the fundamental design differences between flat top and hammerhead cranes is essential. Both types serve the construction industry well, but each offers distinct advantages depending on your specific requirements. This comprehensive comparison will help you make an informed decision.

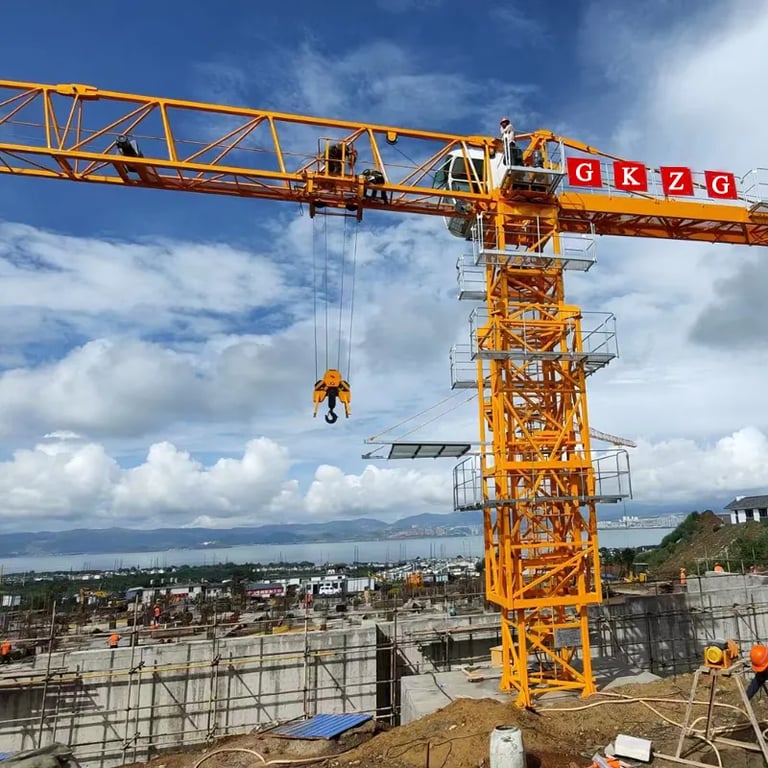

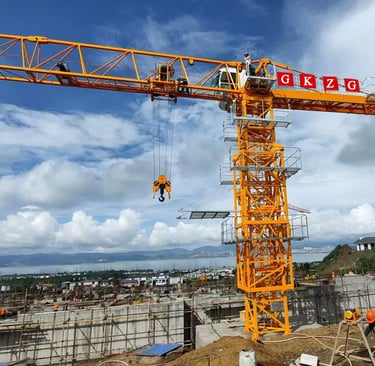

What is a Flat Top Tower Crane?

A flat top tower crane, also known as a topless tower crane, features a simplified mast structure without the traditional A-frame or hammerhead crosshead at the top. Instead, the jibs and counterjibs are supported by horizontal bracing structures, creating a flat profile when viewed from the side.

Key characteristics:

• No cross-bracing at the top of the mast

• Horizontal working jib and counter-jib arrangement

• Reduced headroom requirements

• Ideal for limited-height applications

What is a Hammerhead Tower Crane?

A hammerhead tower crane uses a traditional A-frame design at the top of the mast, with the jib extending horizontally from one side and the counter-jib on the other. The counterweights balance the loads, creating the distinctive hammerhead shape.

Key characteristics:

• A-frame crosshead at mast top

• Proven design with decades of refinement

• Excellent stability and lifting performance

• Widely used worldwide

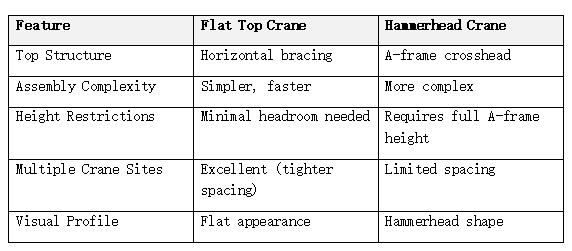

Structural Differences at a Glance

Installation and Assembly Comparison

Flat Top Cranes

• Faster assembly: Without the A-frame, fewer components need positioning at height

• Lower crane requirements: A smaller assisting crane can often handle assembly

• Better for tight sites: Reduced clearances simplify positioning

• Ideal for climbing operations: Easier to adjust during self-climbing

Hammerhead Cranes

• More components to assemble: The A-frame requires careful positioning

• Larger assisting crane needed: For initial lift of the crosshead

• Simpler bracing design: Traditional engineering approach

• Proven assembly procedures: Well-documented methods worldwide

Application Suitability

Choose a Flat Top Crane When:

• Working in urban areas with height restrictions

• Operating multiple cranes in close proximity

• Building high-rise structures requiring frequent climbing

• Space is limited for crane positioning

• Quick assembly/disassembly is critical

GKZG's QTZP series flat top tower cranes excel in these scenarios, offering exceptional performance for high-rise construction projects.

Choose a Hammerhead Crane When:

• Budget constraints are a primary concern

• Working in open areas with ample space

• Preference for widely available spare parts

• Familiarity with traditional crane operations

• General construction with standard heights

GKZG's QTZ series hammerhead cranes deliver reliable performance at competitive prices for these applications.

Cost Considerations

Generally, flat top cranes command a slight premium due to their more sophisticated design and manufacturing complexity. However, this difference is often offset by:

• Reduced assembly time and labor costs

• Lower requirements for assisting equipment

• Better performance in challenging site conditions

• Enhanced capability for multi-crane operations

Hammerhead cranes offer excellent value for projects without special requirements, with lower initial costs and straightforward maintenance.

Making Your Decision

Consider these factors to guide your choice:

1. Site constraints: Height limits and available space

2. Project type: High-rise vs. general construction

3. Multi-crane operations: Will multiple cranes work together?

4. Budget: Initial cost vs. long-term operational efficiency

5. Timeline: Assembly speed requirements

Trust GKZG for Your Tower Crane Solution

Whether you need a flat top or hammerhead tower crane, GKZG Heavy Industry offers both options with proven quality and competitive pricing. Our QTZP and QTZ series are CE certified and exported worldwide to markets including Turkey, Southeast Asia, and Central Asia.
