SC200/200 Construction Hoist Elevator
The SC200/200 Construction Hoist is a high-efficiency passenger and material hoist designed for vertical transportation on construction sites. It is widely used in high-rise building construction, infrastructure projects, and industrial facilities, providing safe and reliable lifting of workers and construction materials.

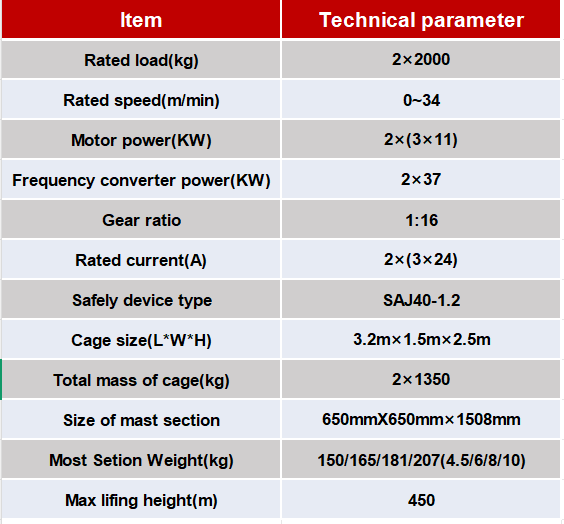

Roted load (kg) | 2×2000 |
|---|---|
Roted speed(m/min) | 0~34 |
Motor power(KW) | 2×(3×11) |
Frequency converter power(KW) | 2×37 |
Gear ratio | 1:16 |
Rated curent(A) | 2×（3×24） |
Safely device type | SAJ40-1.2 |
Cage size (L*W*H) | 3.2m×1.5m×2.5m |
Total moss of coge(kg) | 2×1350 |

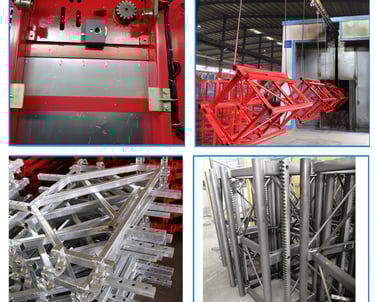

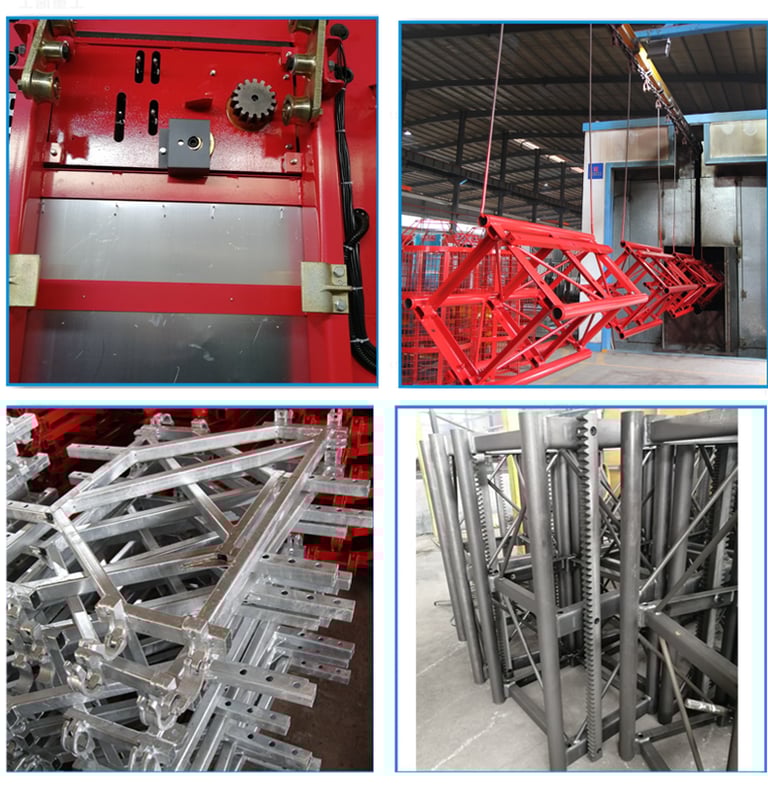

Size of mast section | 650mm×650mm×1508mm |
Most Secton Nerght (kg） | 50/165/181/207(4.5/6/8/10） |
Mox fifing eight(m) | 450 |

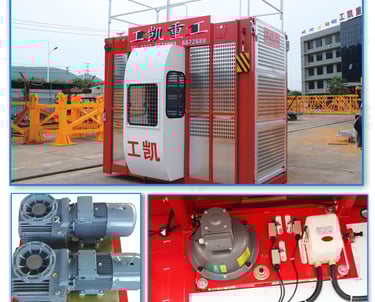

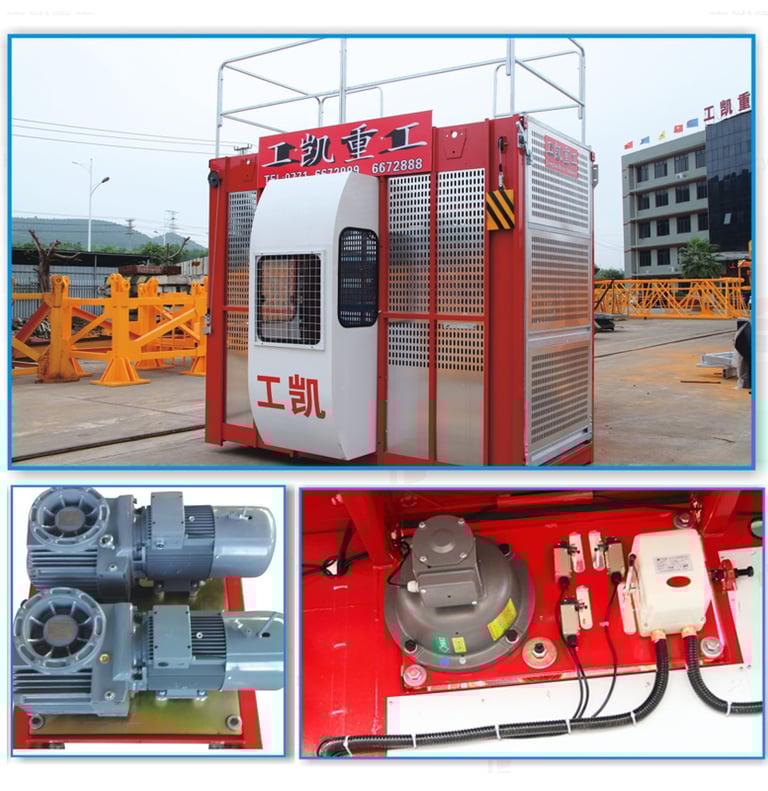

Manufactured by Guangxi Gongkai Heavy Industry Manufacturing Co., Ltd., the SC200/200 construction hoist features a twin-cage design, advanced safety systems, and a high-strength mast structure to ensure smooth operation and maximum productivity on demanding construction projects.
With its stable performance, large load capacity, and flexible installation, the SC200/200 is an ideal vertical transport solution for modern construction sites.
